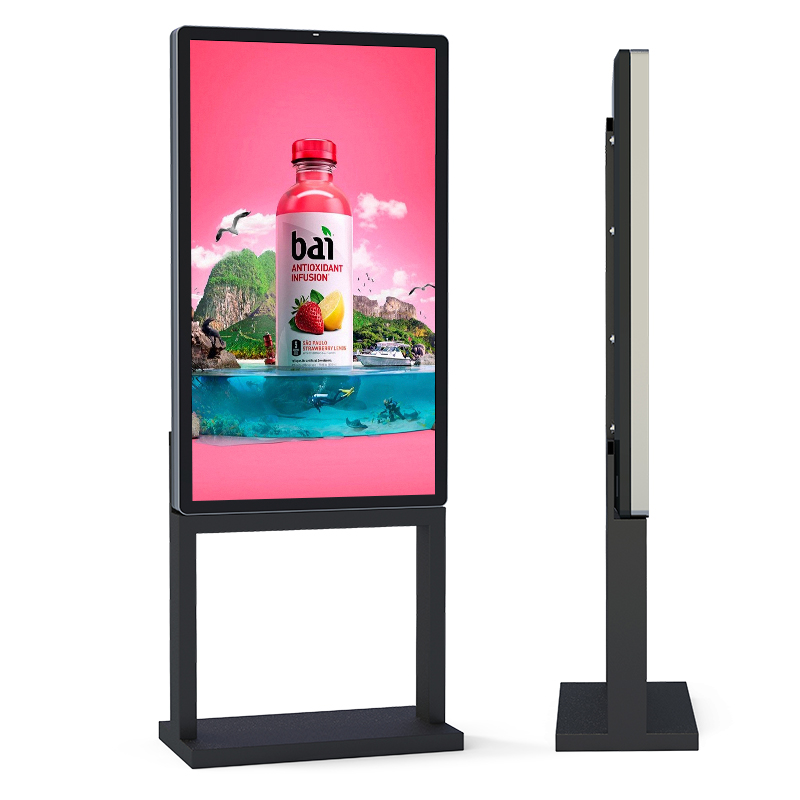

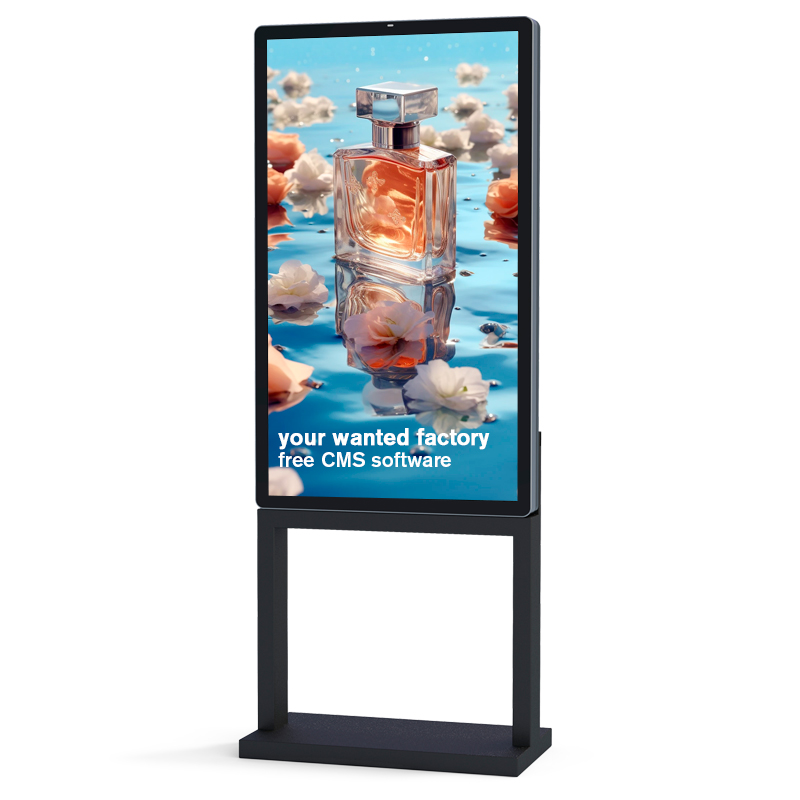

- 4000 nits IP67 floor stand fanless outdoor display
IP67 Protection Grade:
The machine’s outdoor protection level is IP66, which is water-resistant, dustproof, sun-proof, anti-corrosive, and theft-resistant, making it reliably usable in various outdoor weather conditions.
Tempered Protective Glass (IK10 Level):
6mm AR high-transparency glass with an IK10 rating offers optimal protection against complex outdoor environmental factors, significantly reducing damage from external impacts.
Optical Bonded Screen:
The all-in-one machine adopts a fully laminated integrated design with the LCD, without heat dissipation channels in front of the screen, allowing for easy customization to adapt to various external environments.
High-Temperature Resistance:
Even under direct sunlight, the machine can resist blackening defects up to 110℃, and still display imagesclearly. Conventional screens can only withstand temperatures up to 70℃.
Ultra-high brightness:
The all-in-one machine delivers excellent display effects with a brightness of 4000 nits and 24*7 all-weather performance.
|
No. |
Parts |
specification |
parameter |
|
1 |
structure |
Shell |
1.5 mm galvanized steel plate, spray outdoor special power on the surface, protection for 7 years. The door takes waterproof structure design, outdoor rubber seal, meet the IP55 protection grade. |
|
glass |
Using industrial grade 6 mm AR explosion-proof glass |
||
|
2 |
monitor |
LCD display area |
32/43/49/55/65/75 inch |
|
Aspect Ratio |
16：9 |
||
|
Resolution |
1920*1080 |
||
|
Brightness |
3000-4000nit |
||
|
View angle |
178° level / 178°vertical |
||
|
Adjust brightness |
automatic |
||
|
Backlight |
LED backlight |
||
|
touch |
Touch |
Capacitive/no touch |
|
|
3 |
Motherboard
|
Motherboard |
Android or Windows |
|
WIFI |
Yes |
||
|
Display software |
Support networking program distribution, Local program update, Personal version mode play |
||
|
4 |
Electronic control |
Power switch |
Industrial power |
|
Waterproof speaker |
Industrial waterproof high quality 10w speaker |
||
|
lightening protector |
Three level lightning protection（Military quality） |
||
|
Leakage protector |
yes |
||
|
Timer |
Can be set up by the day, week, month automatically switch machine |
||
|
5 |
Heat dissipating |
Intelligent ventilation system |
Air cooling or air conditioner |
|
High temperature automatically shutdown machine |
|||
|
6 |
Other |
weight |
100KG |
|
7 |
operational parameter |
-40℃~+55℃ |
|
|
operating humidity |
5%~95% |
||
|
operating humidity |
AC 220V/50Hz |
||
|
Max power consumption |
400W |
